But as a result I have a rig capable of shooting 4K pictures on a good codec (ProRes at the moment) with a global shutter (so no "jello") and I have a piece of software that would cost $995 if bought separately, more about this later. But the usability of the BMPC is always an issue and the form factor of the camera worried me because it is heavy and, I predict, easy to drop. I also needed something to attach the EVF and an external microphone.

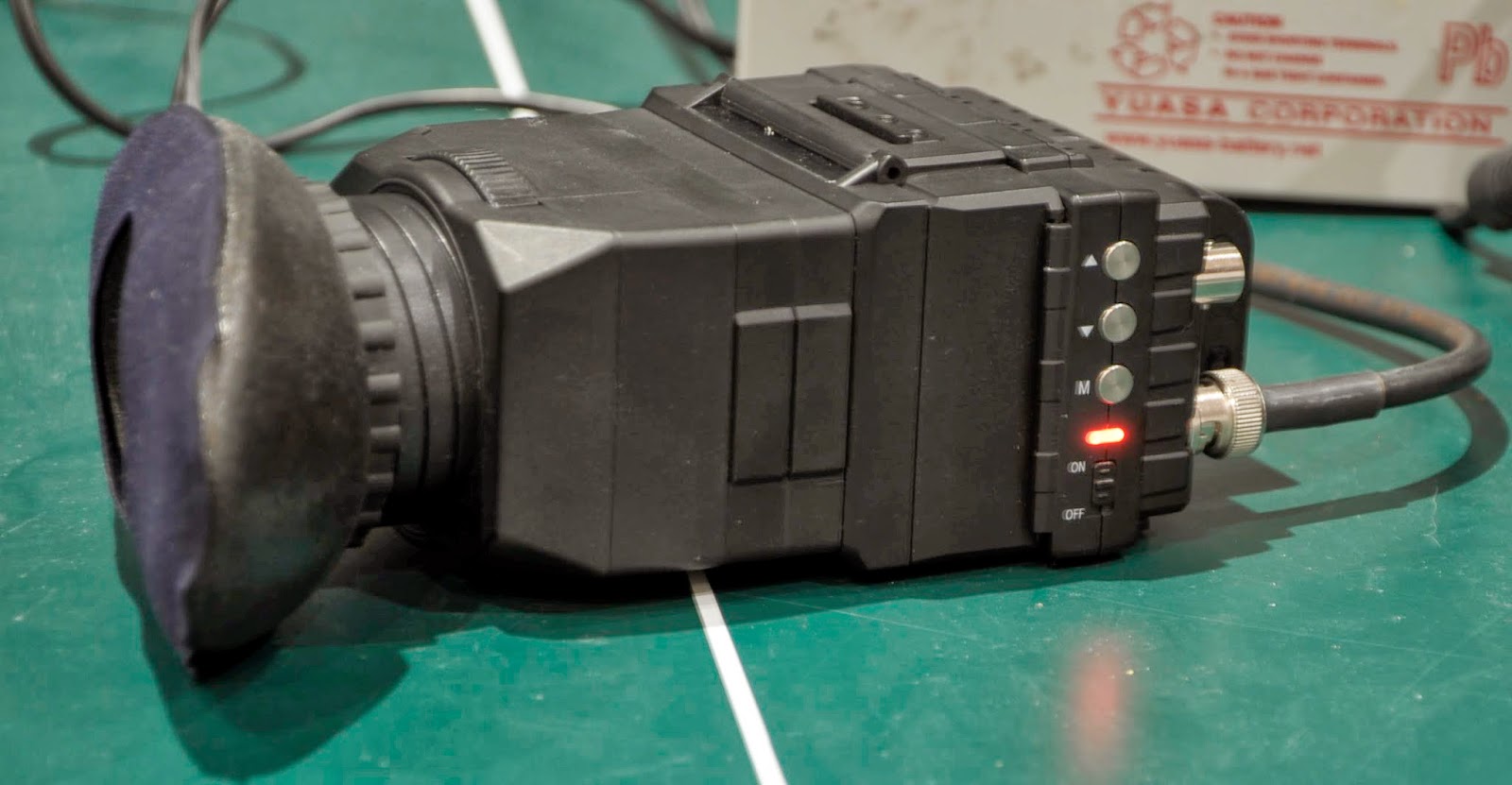

I had looked at a lot of cages but the cheap ones were, well cheap, and all of them were bulky and meant I couldn't fit all the kit in my brilliant Lowepro Stealth Reporter D550AW bag. My solution is from Redrock Micro with a top handle and the Ultraplate which added about £100 to the total. The Ultraplate offers just enough screw points to attach the handle, the EVF on a mini magic arm and a mic or recorder if needed.
So I have shot the footage, got (most of) it in focus thanks to the EVF and now I need to edit it and Blackmagic Design have kindly included a copy of DaVinci Resolve 10 with a USB key in the BMPC box to help me. This is the first time I have tried to work with 4K footage and I have a pretty powerful PC to do so with i7 processor, 32 GB RAM, Nvidia GeForce GTX 570 and Quadro FX580 graphics cards. Unfortunately this is far to weak to properly edit 4K footage and as I don't have a 4K monitor I can either view the footage in HD or just see the top half of the footage spread over two 1920 monitors.
It's not brilliant but it is possible to work this way and produce great results. I work mainly with Avid Media Composer which is less than useless for 4K or Adobe After Effects which is more than good but Resolve is like neither of these and if you are going to use it properly will take fair bit of learning - persevere it is well worth it. This is not a tutorial in Resolve so I just want to highlight some of the Eureka moments I have had so far.
Where you store your footage for editing is really important, run the included Blackmagic Disk Speed Test on all your drives and put the material on the fastest one - you can archive to a slower drive later. A raid drive such as the G-Raid is likely to be the best, better than the fast SSD (that was a surprise).
Unless you have a monster $1000+ GPU like the GTX690 or NVIDIA Titan you will not be able to play 4K on your timeline, you will get a screen of shash and a GPU out of memory message. Go to project settings and select 1920x1080 as your timeline resolution.
THIS IS IMPORTANT. When you have finished editing and grading and you go to the "delivery" window and select UHD as your output you have to go back into project settings and set the timeline to UHD, if you don't your final output will be HD expanded to fit the UHD raster. Resolve is actually very good at this and it took a lot of looking to see the difference. Below is a still from a scene in Trafalgar Square and two crops with the timeline set to different resolutions. The middle picture shows the image at 400% with the timeline set to UHD and the bottom picture with it set to HD. The bottom picture shows a lot less detail.
If you look at the comparison table of Resolve lite and the full version there doesn't seem to be a lot of difference, but go about a third of the way down and you will see this section:
After the sharpening tool (like the 5D the images generally benefit from a bit of sharpening) the noise reduction tools make a huge difference particularly in areas like sky or flesh tones, be gentle with it and you will be rewarded. The BMPC is not good at shooting in low light (and I am not a fan of ProRes for this) and sometimes scenes like the one below in St Pancras Station mean lifting the dark areas considerably which can bring in really bad speckle. The noise reduction tool in Resolve is amazing at reducing this.
The format you output will always depend on where you will put it, but I have established a workflow from producing 4K time lapses where I output QuickTime Cineform versions which are indistinguishable from uncompressed files but much smaller and then use Adobe Media Encoder to produce QuickTime PhotoJPEG versions for stock companies or broadcasters since that is such a user friendly format and one that Resolve cannot output directly.
These two blogs have been a quick summary of what I have learnt "hands-on" with this amazing camera and what I feel is the minimum requirement to shoot good footage. Hopefully it will give a bit of guidance to those still in the queue for the 4K Production Camera.
